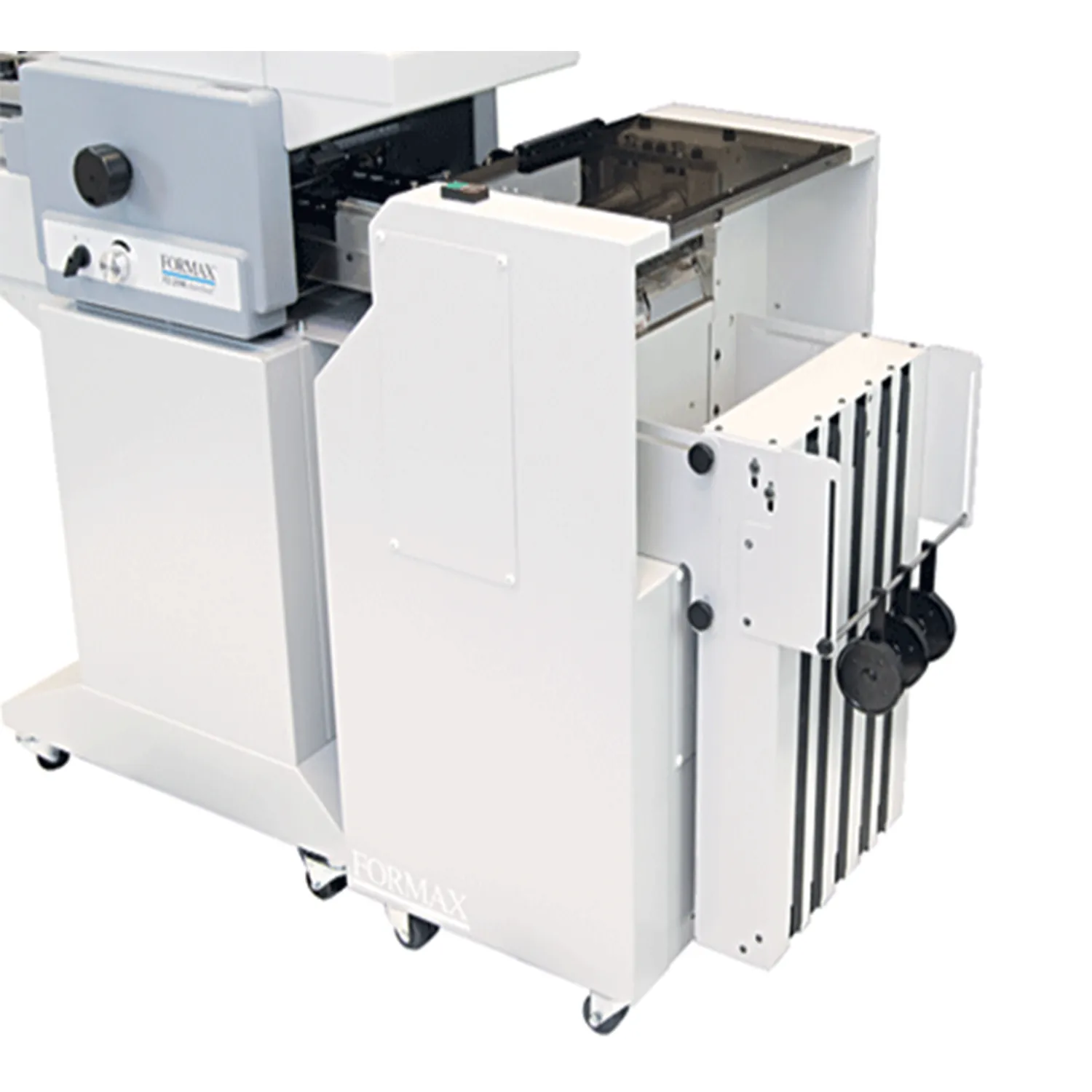

This Formax AutoSeal FD 2096 Mid-Volume Pressure Sealer is a production-level solution for processing pressure seal forms. The FD 2096 replaces the discontinued FD 2094 and features an improved feeding system. It uses a patented pressure seal technology to efficiently process cut-sheet pressure seal forms in a mid-volume production environment, at speeds of up to 30,000 forms per hour. Its bottom-suction air-feed system provides accurate feeding and allows for continual loading of forms, dramatically reducing down time. This Formax AutoSeal FD 2096 has a heavy duty construction combines with quick set-up and operation that makes it a powerful solution for processing mid-volume pressure-seal mailings.

Product Details

• Variable Speed: Large jobs are processed quickly at speeds of up to 30,000 forms per hour.
• Top-Loading Bottom Air Feed: The air feed deck accurately feeds forms, while allowing for continuous top feeding, with no need to stop and reload.

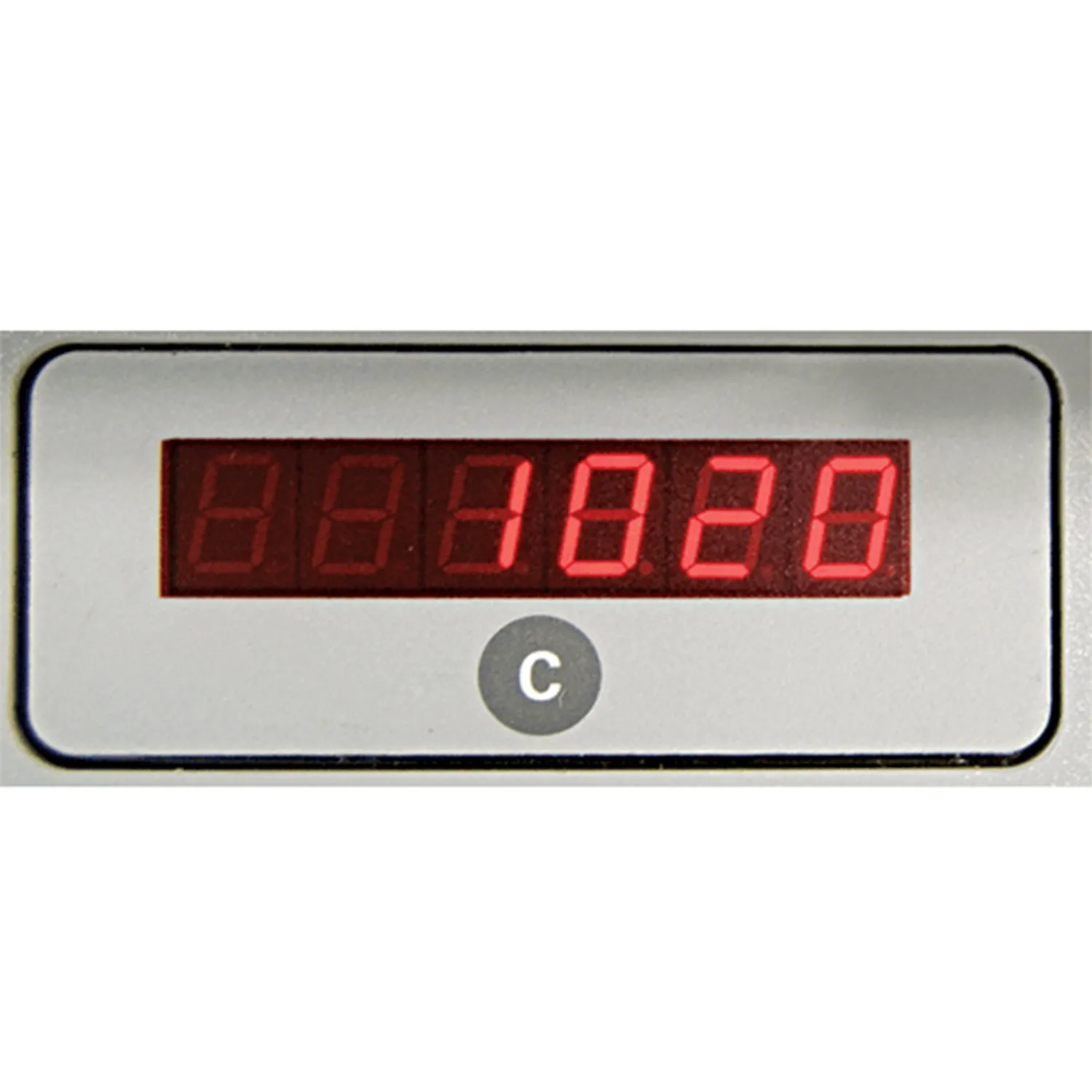

• Resettable Counter: 6-digit LED counter provides maximum audit control.
• Noise Reduction: Covers and fold plates are insulated to reduce operating noise.
• Rugged Construction: Designed for mid-volume production environments.
• Casters for Easy Transport.
• Heavy Duty Fold Rollers: Polyurethane foam rollers eliminate the need for gap ajustments .
• Rugged Fold Plates: Metal fold plates feature metric and standard scales for easy fold setting.
• Air-Feed Pump: Fully enclosed.
• Rotating Air Suction Drum: Located on the feed table, separates sheets for accurate feeding.

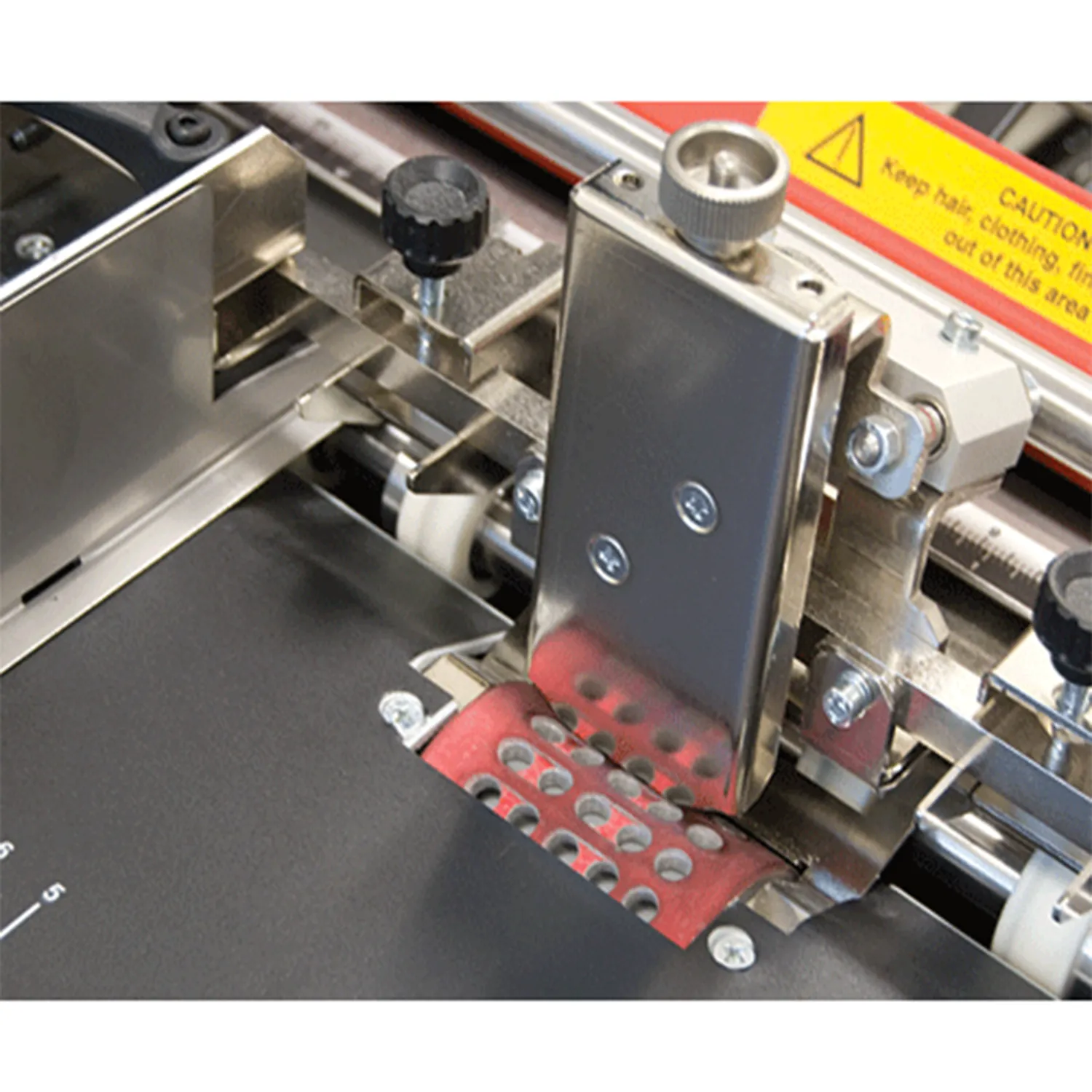

• User-Friendly Adjustments: Fold plates feature a 7-point quick-release fold stop, skew adjusment and fine tuning knob.
• Pressure Rollers: Precision ground clutching four-roller system .
• Ball Transport Deck: Adjustable 17" ball-deck provides smooth, efficient transport from the folder into the sealer.
• Fault Detection: Infrared sensor located at the infeed of the sealer detects any faults and sends a signal to stop the folding unit.
• Plexi-Cover: Hinged with a handle to allow quick access to the sealing area. Includes safety interlock to stop the system when opened.
• Static Eliminator Brush: Located on the exit of the sealer to reduce static electricity and assist in the neat, sequential stacking of forms onto the conveyor.

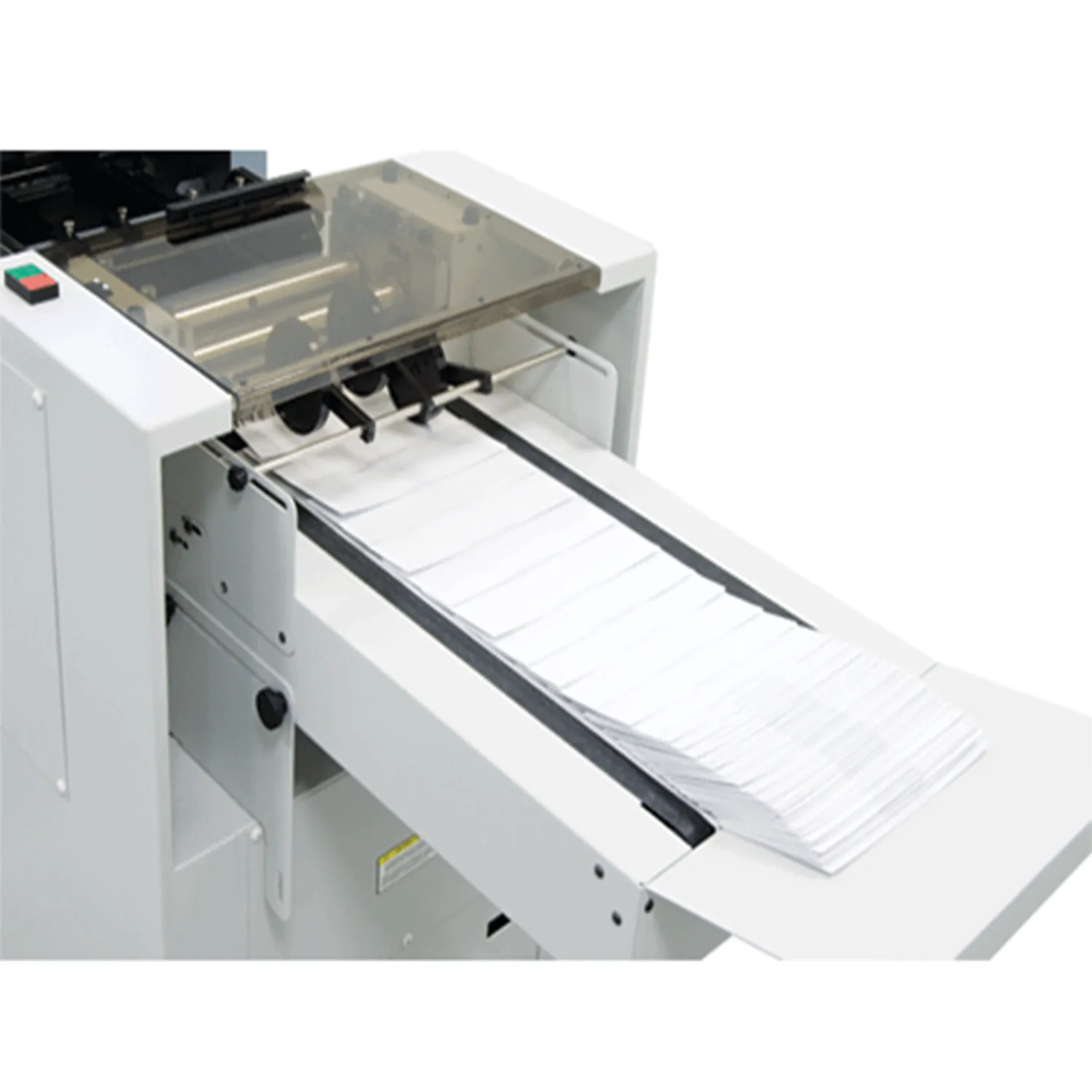

• 24" Outfeed Conveyor: Includes speed control and run-out switch for easy unloading of processed forms.
• Adjustable Stacking Wheels: Help to keep processed forms in a neat, sequential order.
